Gearbox Winding Forend

(1 customer review)

£99.99£169.99

The forend you have always wanted:

  • Continuous height adjustment between 45-105mm
  • Just wind the handle, even while aiming
  • Self-locking in any position
  • For right and left handed use
  • Lightweight, only 170g / 290g (Original / Duplex)

If you are after something much bigger, made of metal and with traditional adjustments, check out our Rowan’s Forend + Gripster combination.

    Reset options
    • If you mount with bolts through the stock or use any custom made parts with M5 bolts

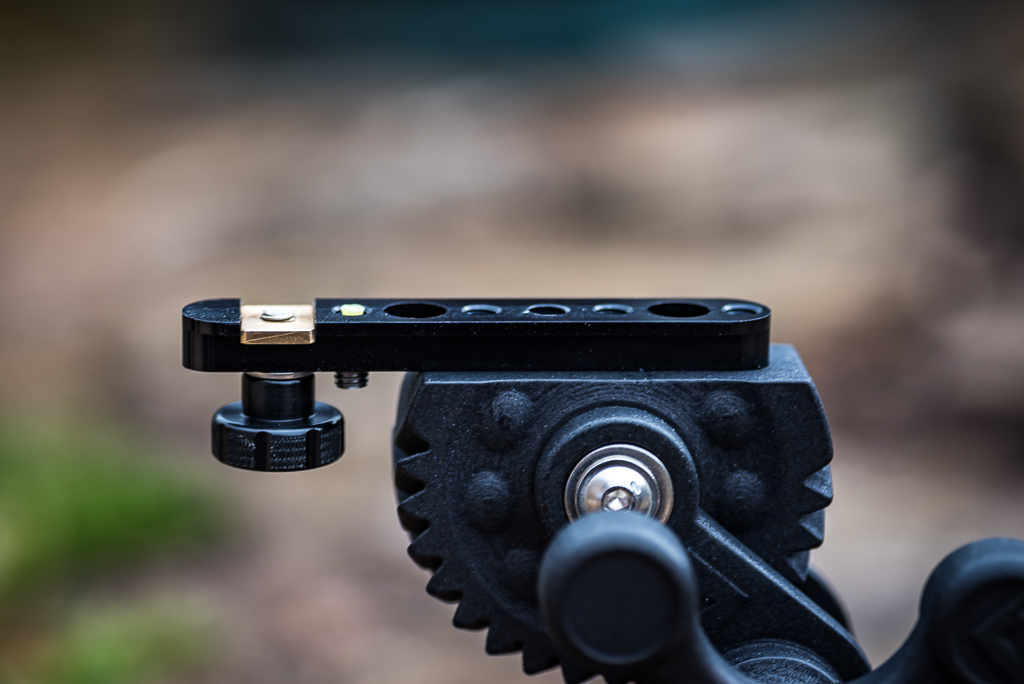

    • Fits to Rowan's T-Rail or any custom made parts with M5 threads
    • Fits most accessory rails
    • Fits to the FTP-900 stock
    • Fits to standard UIT accessory rails, with a thumb screw for quick adjustment along the rifle's length
    • Quick release adapter for Picatinny / Weaver accessory rails
    • Fits to Arca Swiss dovetails
    • You'll get the mechanism with M5 countersunk head bolts, CTC 36mm
    • You'll get the mechanism with M5 countersunk head bolts, CTC 36mm

    Help me to choose the right size bolts for you, measure the thickness of your hamster in mm. Leave this field empty if you don't know it yet or if you'll use your own bolts.

    • Recommended for right handed shooters
    • Recommended for left handed shooters

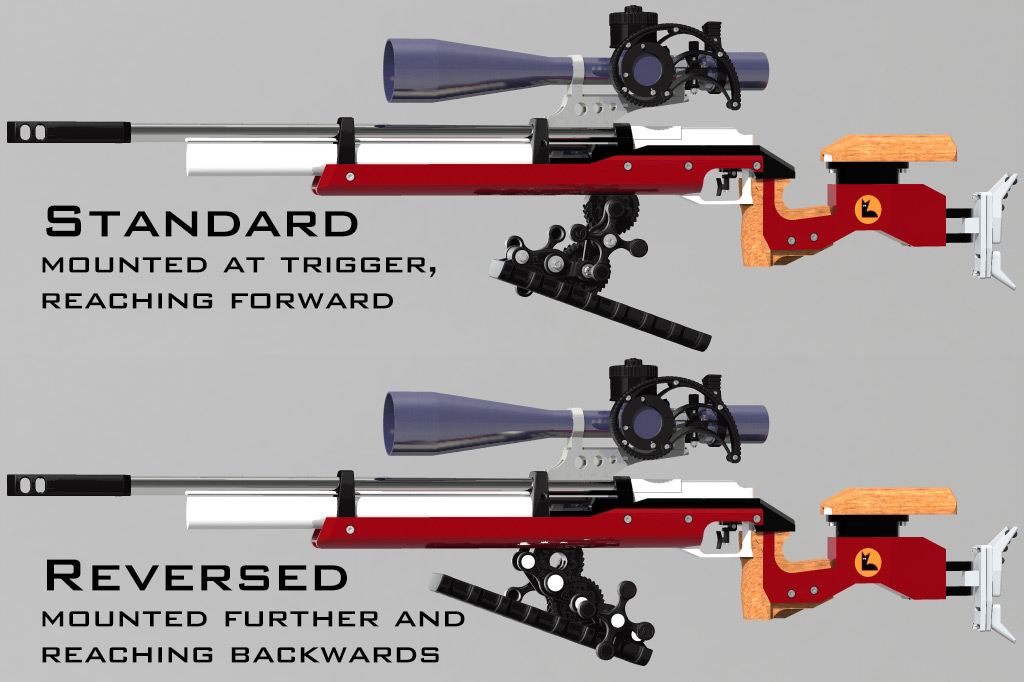

    Specifies whether the mechanism reaches forward or backwards, see the picture

    • Mounted at trigger, reaching forward
    • Mounted further and reaching backwards

Description

A totally new conception

All adjustments work without lifting the rifle’s weight, and without the need for unlocking/locking.

Just wind the handles and it moves! Here is a video, demonstrating how it works on my rifle: https://www.facebook.com/maestrodesign/videos/2336972249747829/

Fixed hamster angle (Original)

The hamster stays parallel with the rifle (or can be permanently adjusted in 12° steps by disassembling the mechanism). It is perfect for all shooters who don’t need extreme hamster position, just want a quick and comfortable height adjustment, even with the crosshair on the target.

Original – Fixed Hamster Angle

Adjustable tilt angle (Duplex)

The hamster can be tilted with a separate handle, and will keep that angle when elevated. This version allows much more adjustment, in a unique and very comfortable way.

Duplex – Adjustable Tilt Angle

Still not enough?

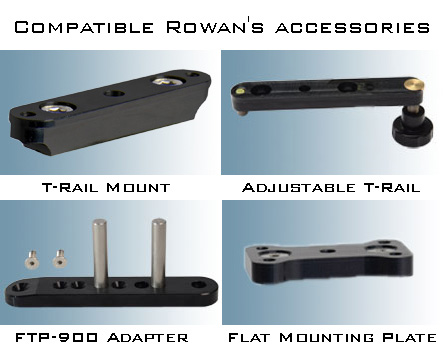

Then maybe you’ll need Rowan Engineering’s well-known metal forend mechanism, which is available in our web shop, with all original accessories and also with the Gripster hamsters: Rowan’s Forend + Gripster.

Additional information

Weight 170 g
ADJUSTMENTS

Simple (elevation only), Duplex (elevation + tilt angle)

1 review for Gearbox Winding Forend

  1. Hennie van Dalen (verified owner)

    Mounted it under a 6kg springer airgun.
    Stays in the adjusted postion and adjusting it while aiming is easy.
