This is a custom design for a Nightforce 15-55×52 Competition scope. The click turret is the usual ProTurret Bottoming model, but the owner asked something special for the sidewheel.

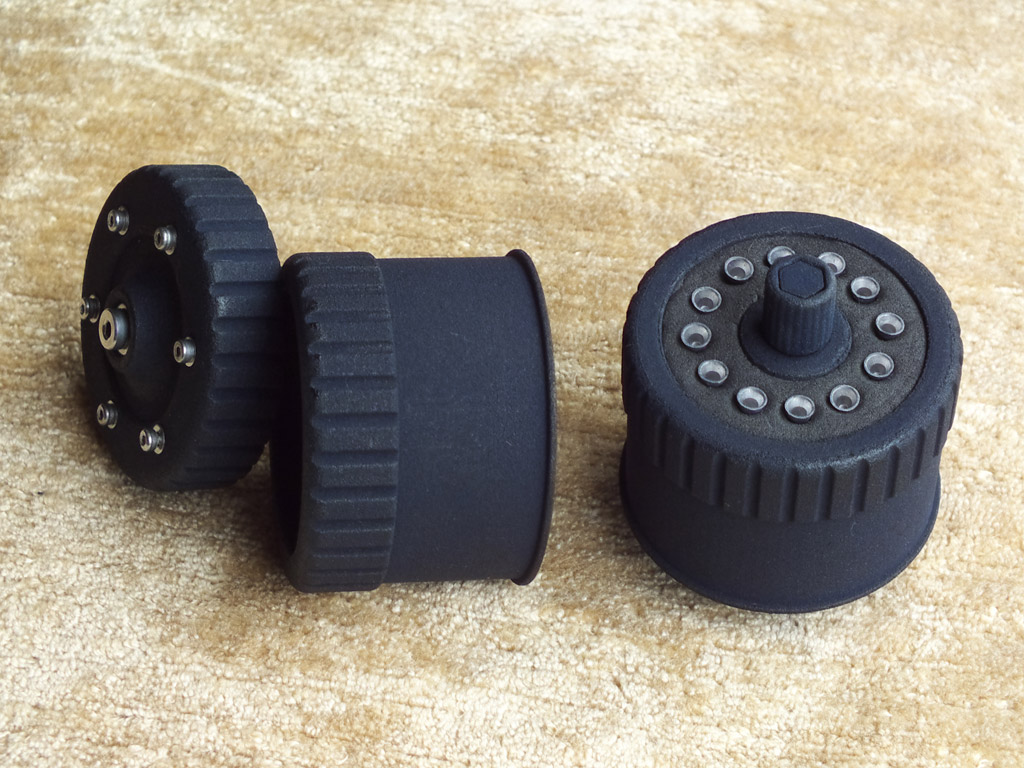

Finally, I designed a ‘Benchrest Duo‘: two parallax knobs, one has got the very same look as the click turret, the other one is only a grooved knob, without any scale (for benchrest shooting). The knobs use the same adaptor ring, so one can remove the big knob and replace it with the small one, and then put it back again, without losing its position.
Please note the big screw in the middle – that one, and one of the 6 small screw do not hold anything, I put them there only for the better look. It is important for me, that my designs shall be not only functional, but also aesthetic :-)

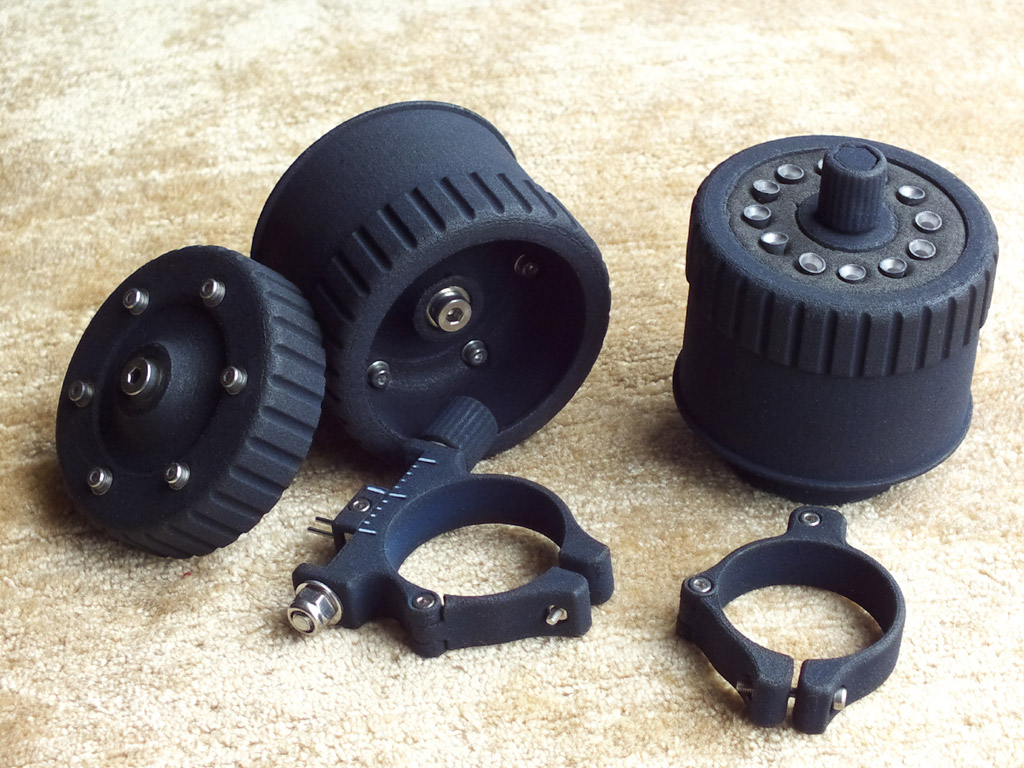

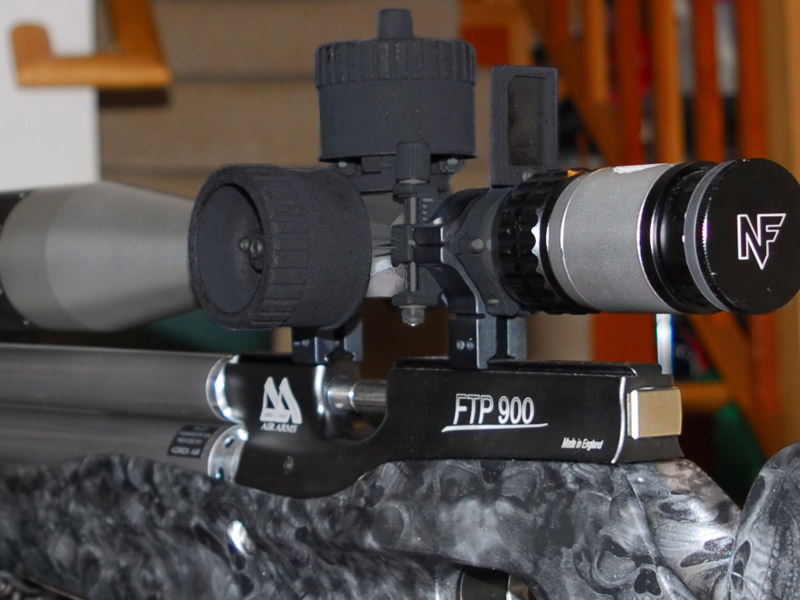

This is the full kit: parallax knob(s), click turret, EasyPin pointer for the clicks and a SmartPin for the parallax. And now you can see them on the scope:
