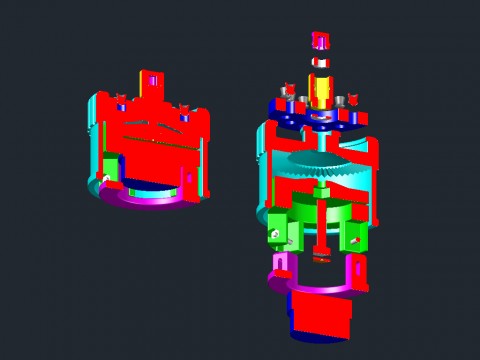

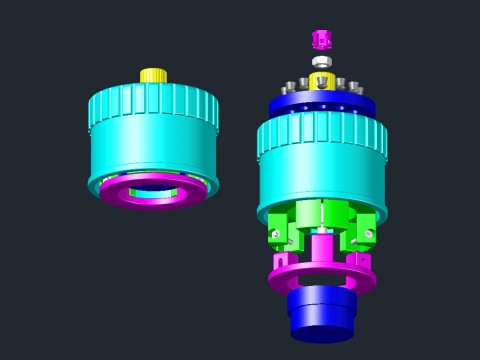

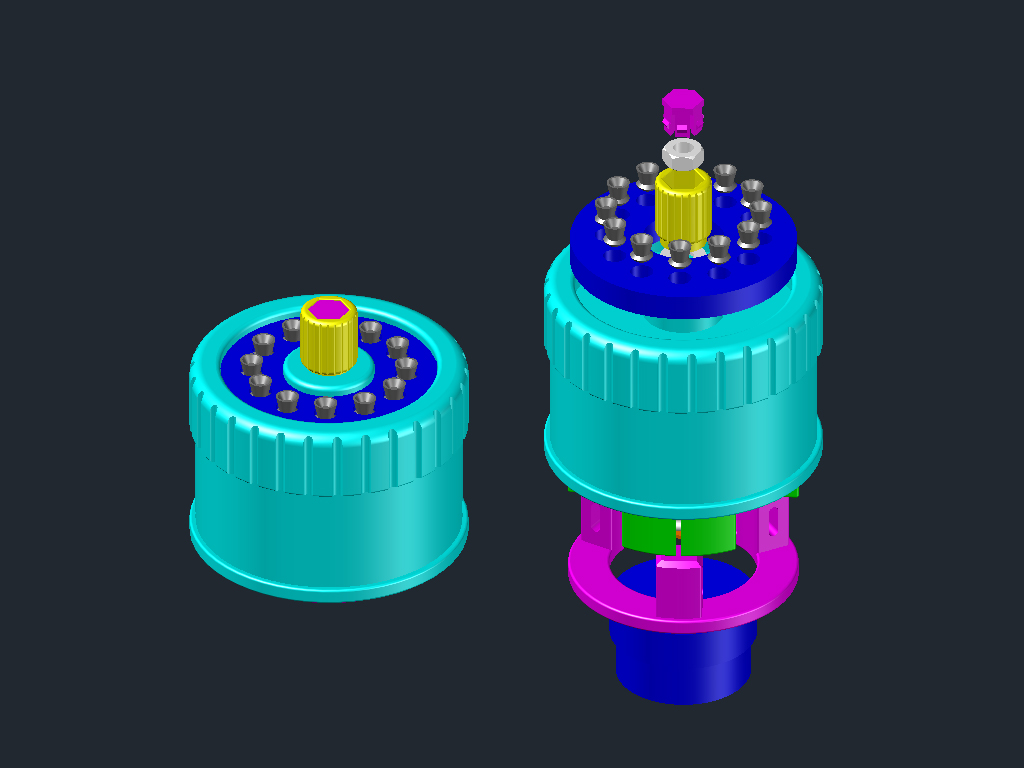

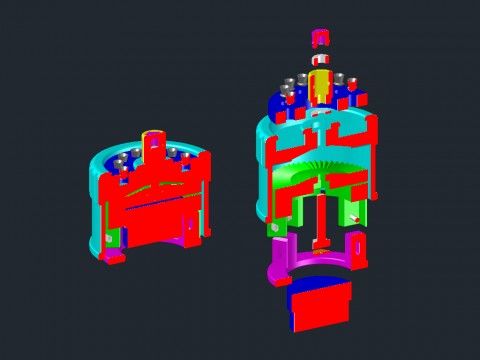

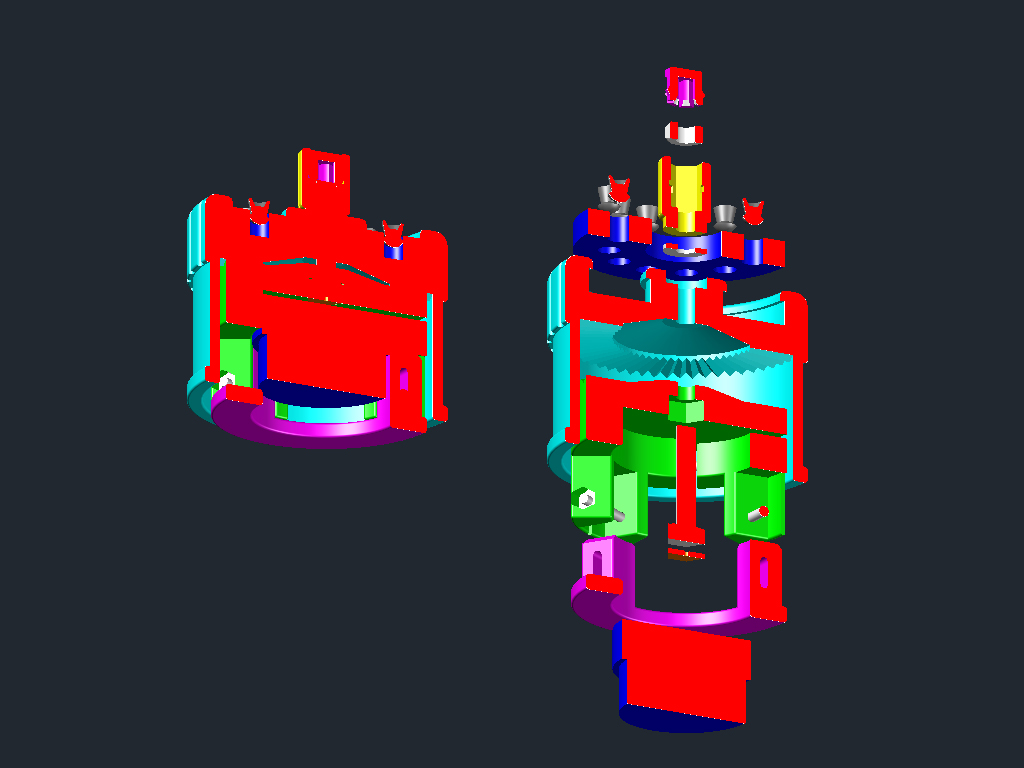

I made some more 3D visuals of the new click turret, so you can see how it works. The left side of the picture shows it assembled on the scope turret, and the right side shows an exploded cutaway view.
Let’s see the parts from the top:
- Plug for the thumb screw (purple)
- M4 nut
- Thumb screw (yellow) – resetting without allen keys
- M4 washer
- Pellet holder (blue) – a flexible holder for 12 pellets
- Outside knob (light blue) – with gears at the bottom
- Inside kob (green) – this goes to the original knob
- M4 hex bolt
- Protection (orange) – separates the bolt and scope’s turret
- Bottoming ring (purple) – can be adjusted so the turret bottoms where needed
- Original turret knob of the scope (blue)
