More Feinwerkbau Parts

My project with new Feinwerkbau rifle parts goes on. I totally got rid of the original butt plate’s contact surfaces and designed my own system. Of course, with a FolloWing on the top :-) Nothing special but with everything that is really needed.

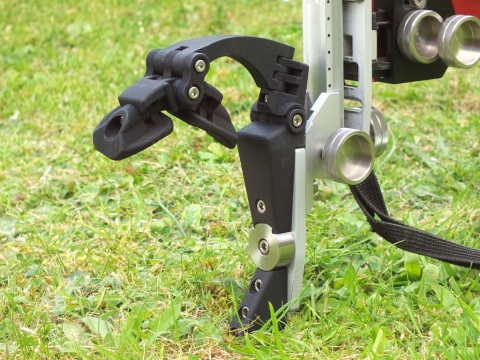

Laser sintered Butt-hook for Feinwerkbau
Laser sintered Butt-hook for Feinwerkbau

Another steel part has been replaced to a Nylon one, already 186 g dead weight is removed from the rifle.

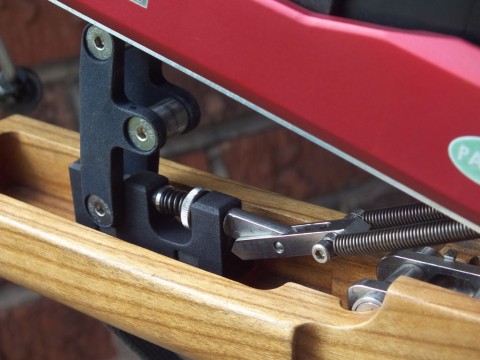

Lightweight replacement for the forend mechanism
Lightweight replacement for the forend mechanism

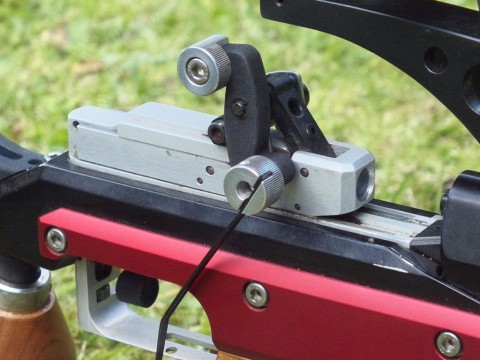

And replaced also the loading port lever. This lever is very comfortable, I can close the loading port by rotating the long arm with two fingers, instead of pushing a small and ugly part with one finger. An additional feature is the safety mark, that cable tie blocks the trigger finger when the loading port is open but moves from the way when it is closed.

New lever for the loading port
New lever for the loading port
